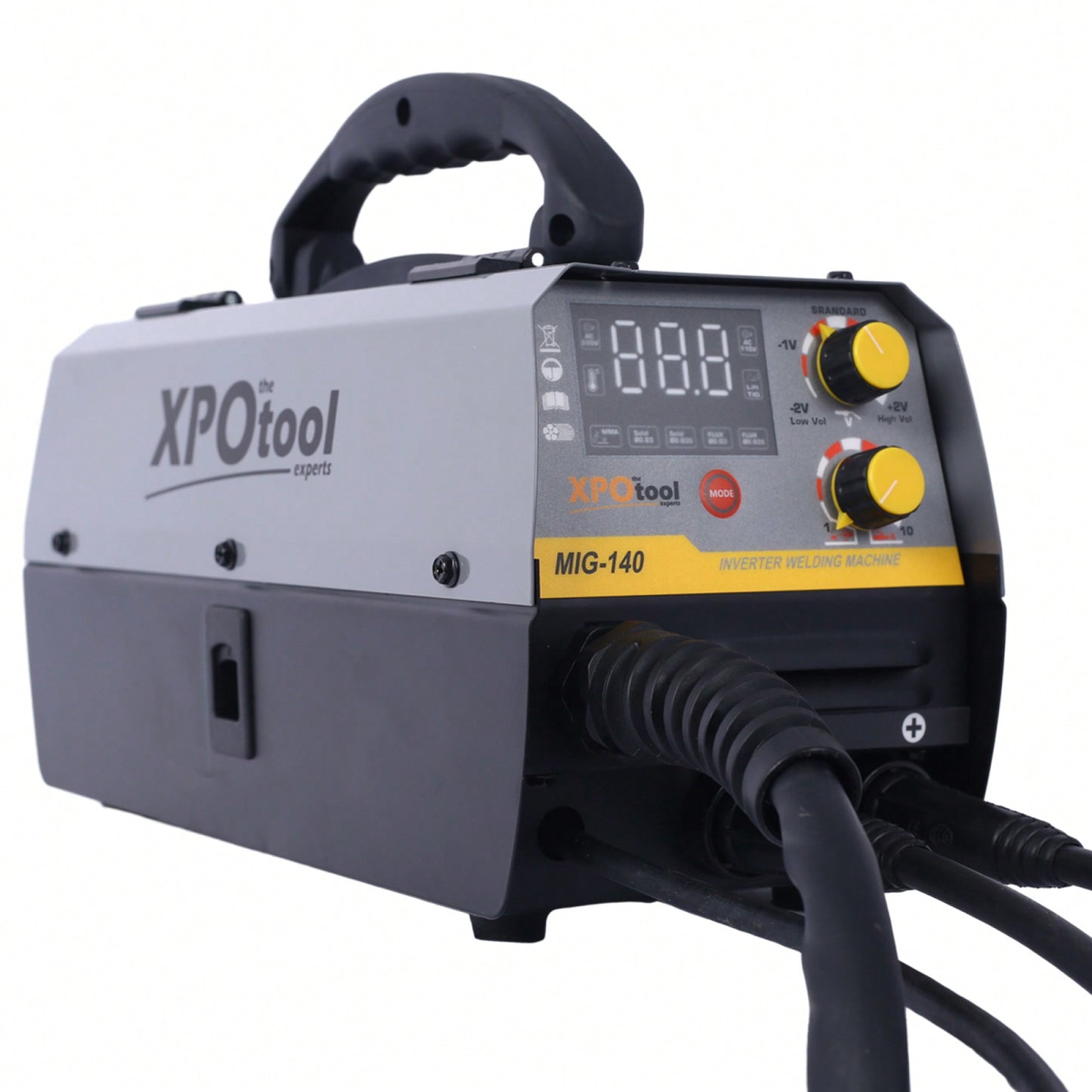

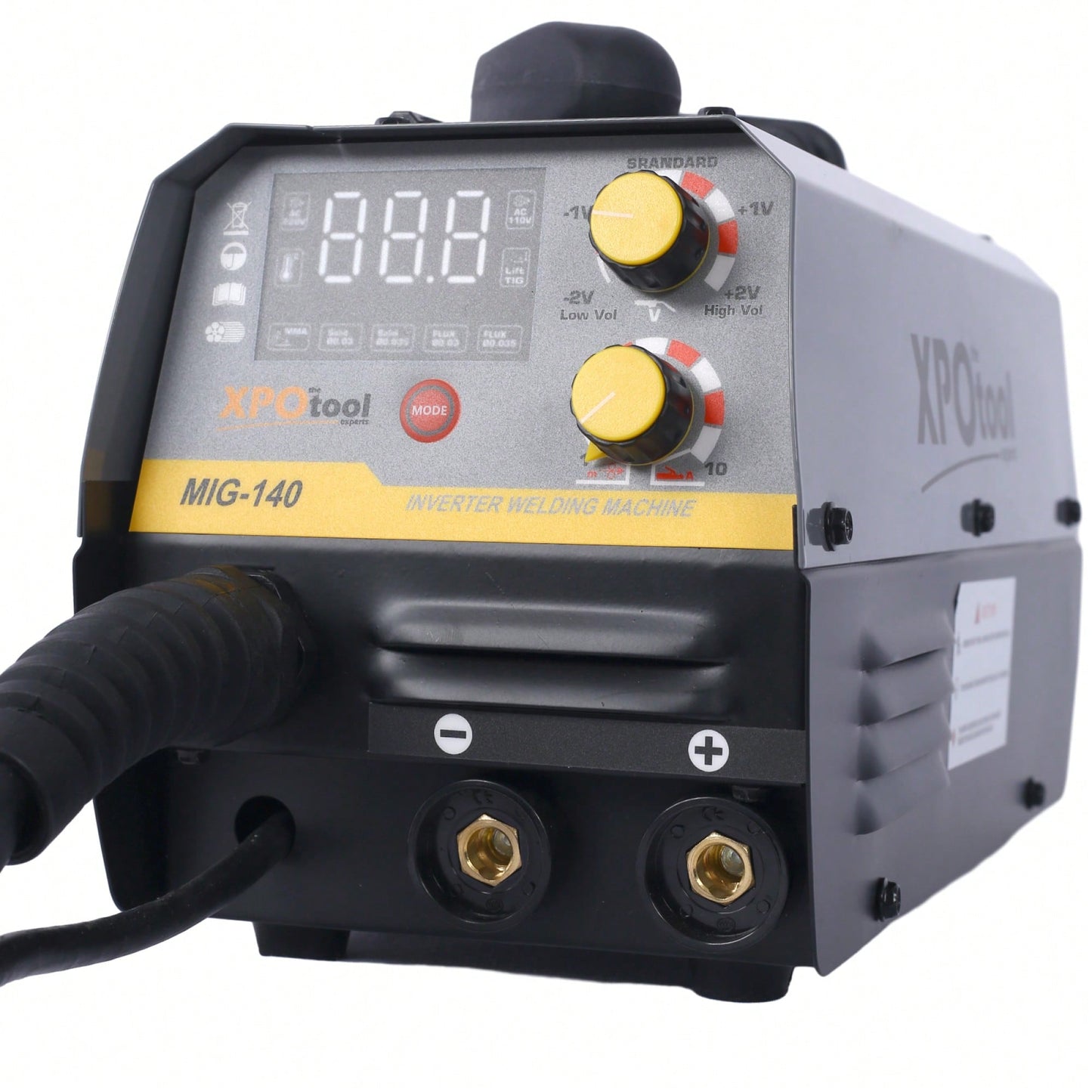

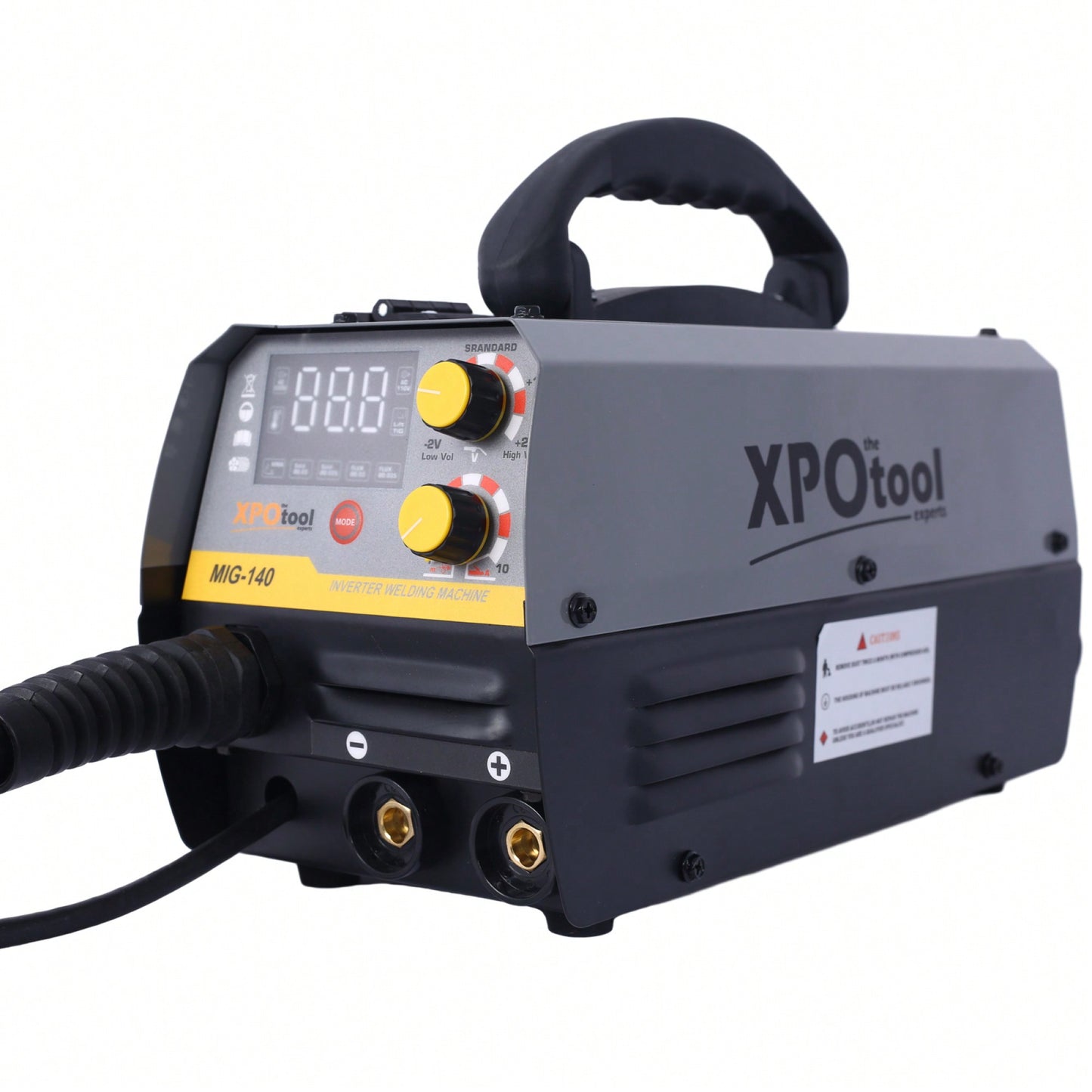

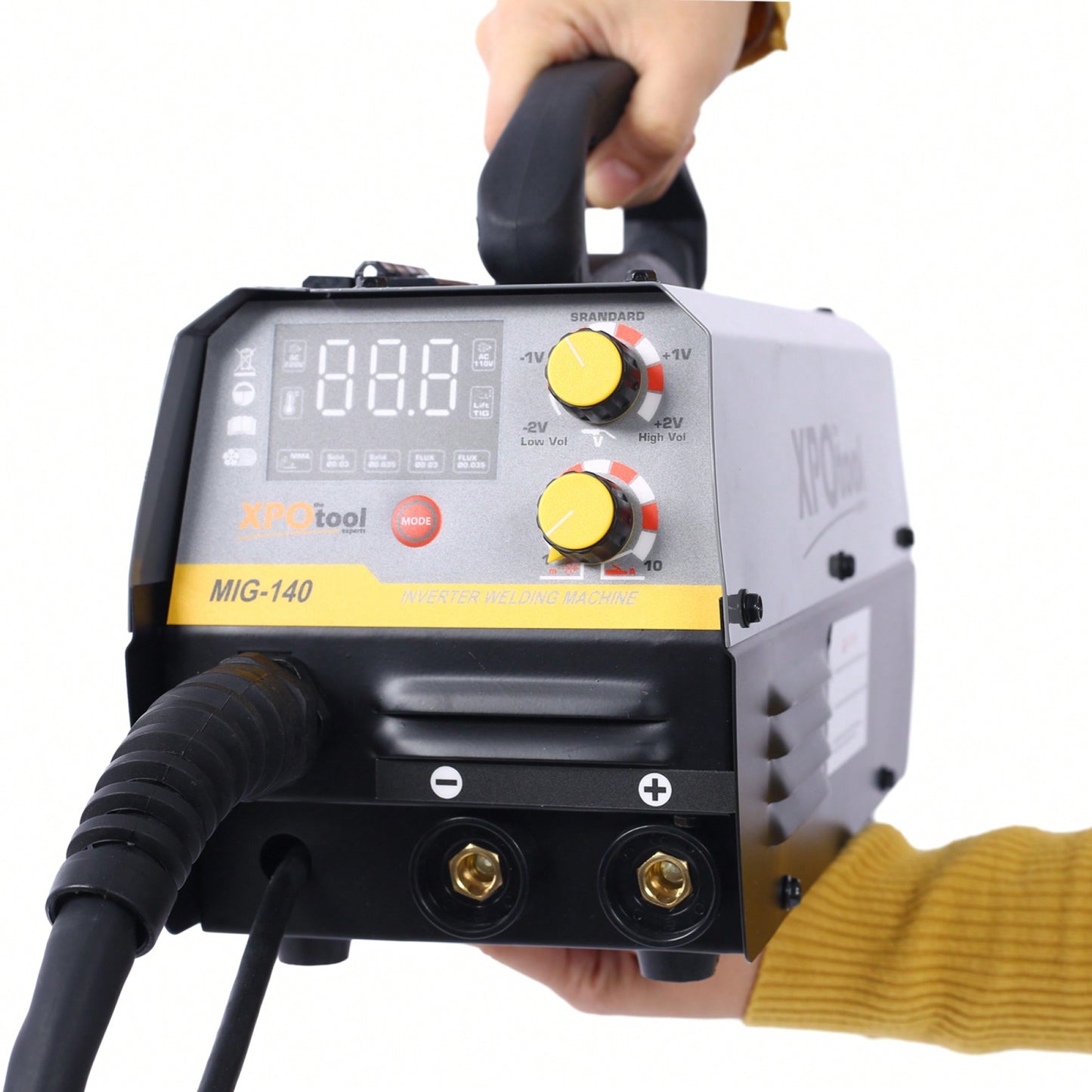

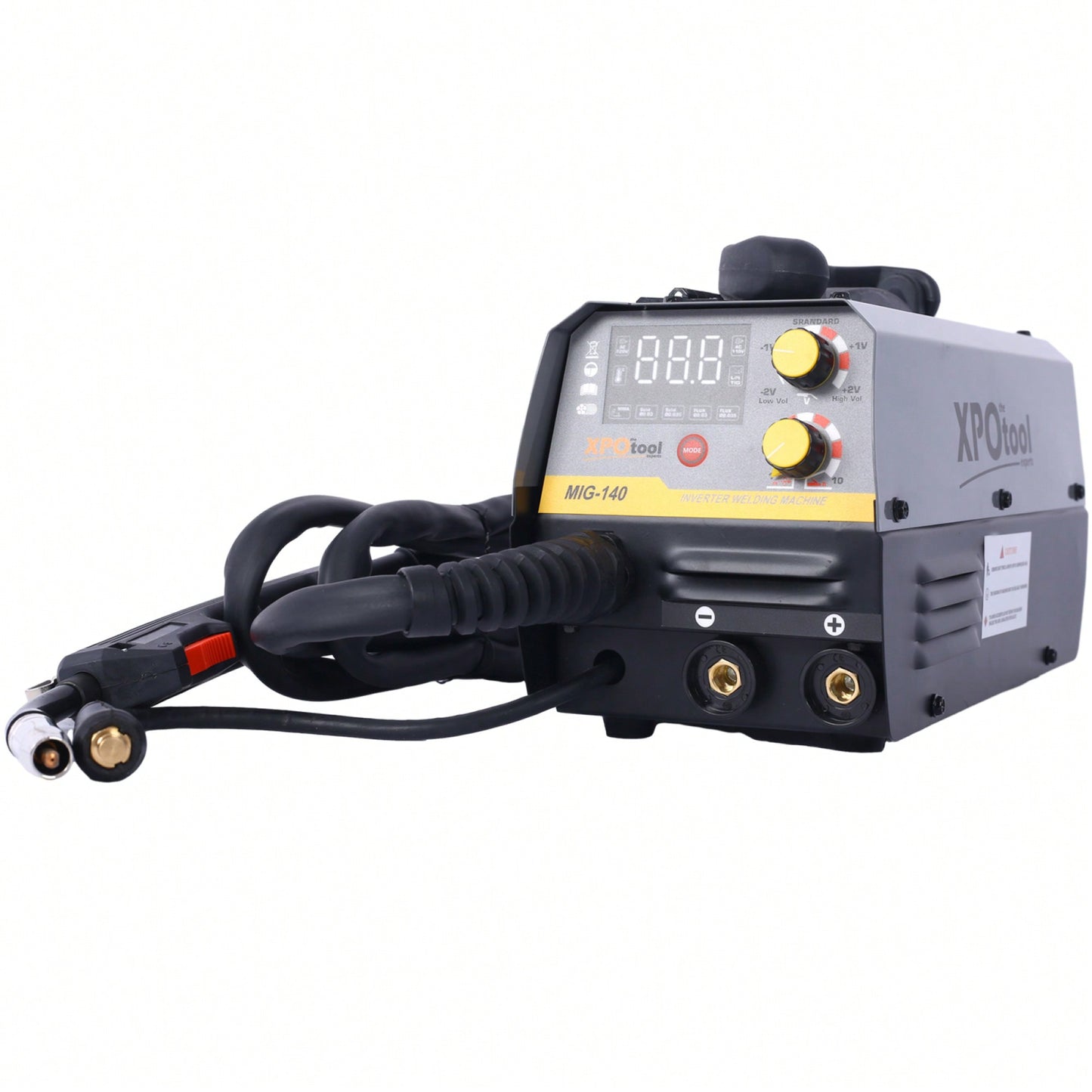

Versatile 4-In-1 MIG Welder: 110V Gas & Gasless MIG Welding Machine For Flux, Solid Wire, Lift TIG, And Stick ARC Applications

Description

Features

- Multi-functional welding machine with 4 modes: MMA, Lift TIG, Flux MIG, and Gas MIG.

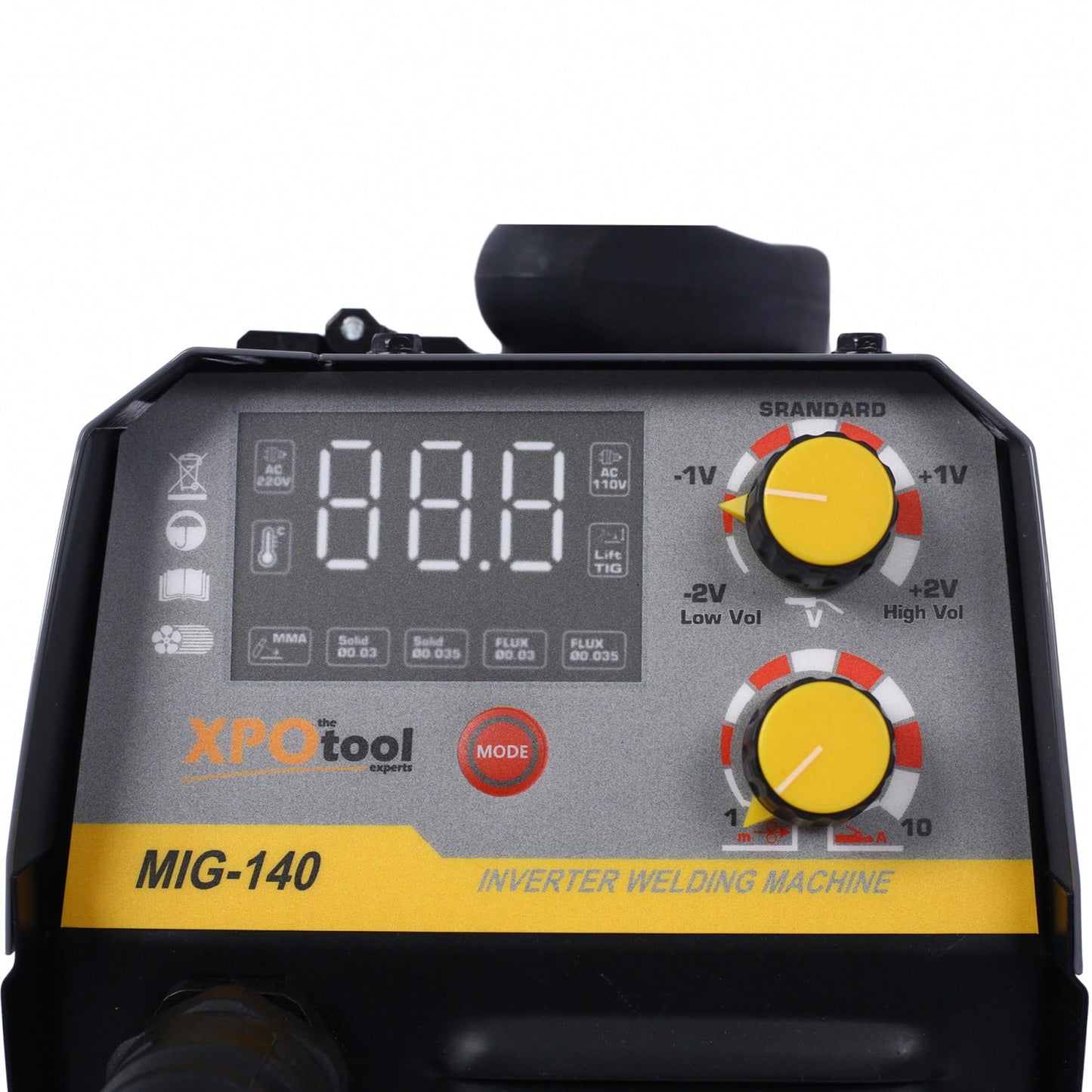

- User-friendly synergic control to automatically adjust voltage and wire feeding speed based on amperage and wire thickness.

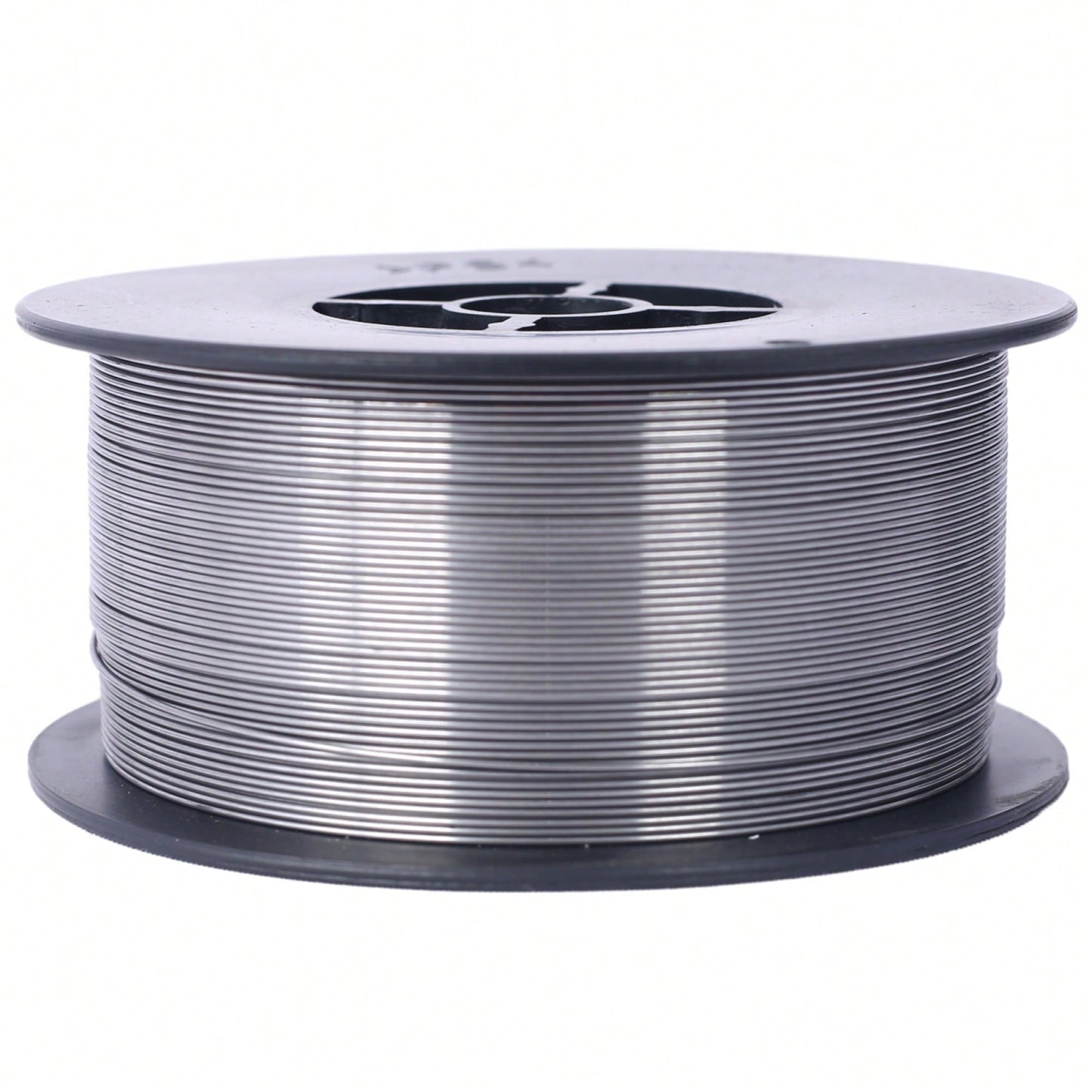

- Capable of gas or gasless welding, accommodating both flux core wire and solid wire.
- Supports Lift TIG welding and ARC capabilities, suitable for various materials.
- Designed with safety features including overload and overheating protection for reliable performance.

Product Description

This versatile welding machine is designed for a wide range of applications, offering the flexibility of four different welding modes: MMA, Lift TIG, Flux MIG, and Gas MIG. It incorporates user-friendly synergic control, allowing operators to easily set the amperage and wire thickness, with the machine automatically adjusting the voltage and wire feed speed. Whether you prefer gas or gasless welding, this unit is compatible with both flux core and solid wire, making it suitable for welding materials up to 4.0mm thick.

The machine also features Lift TIG capabilities, which require a compatible TIG torch fitting (not included), enabling precise welding of thin materials like stainless steel and carbon steel. With a powerful output of up to 140A, it can effectively weld mild steel and offers a safe operation with built-in overload and overheating protection.

Specifications

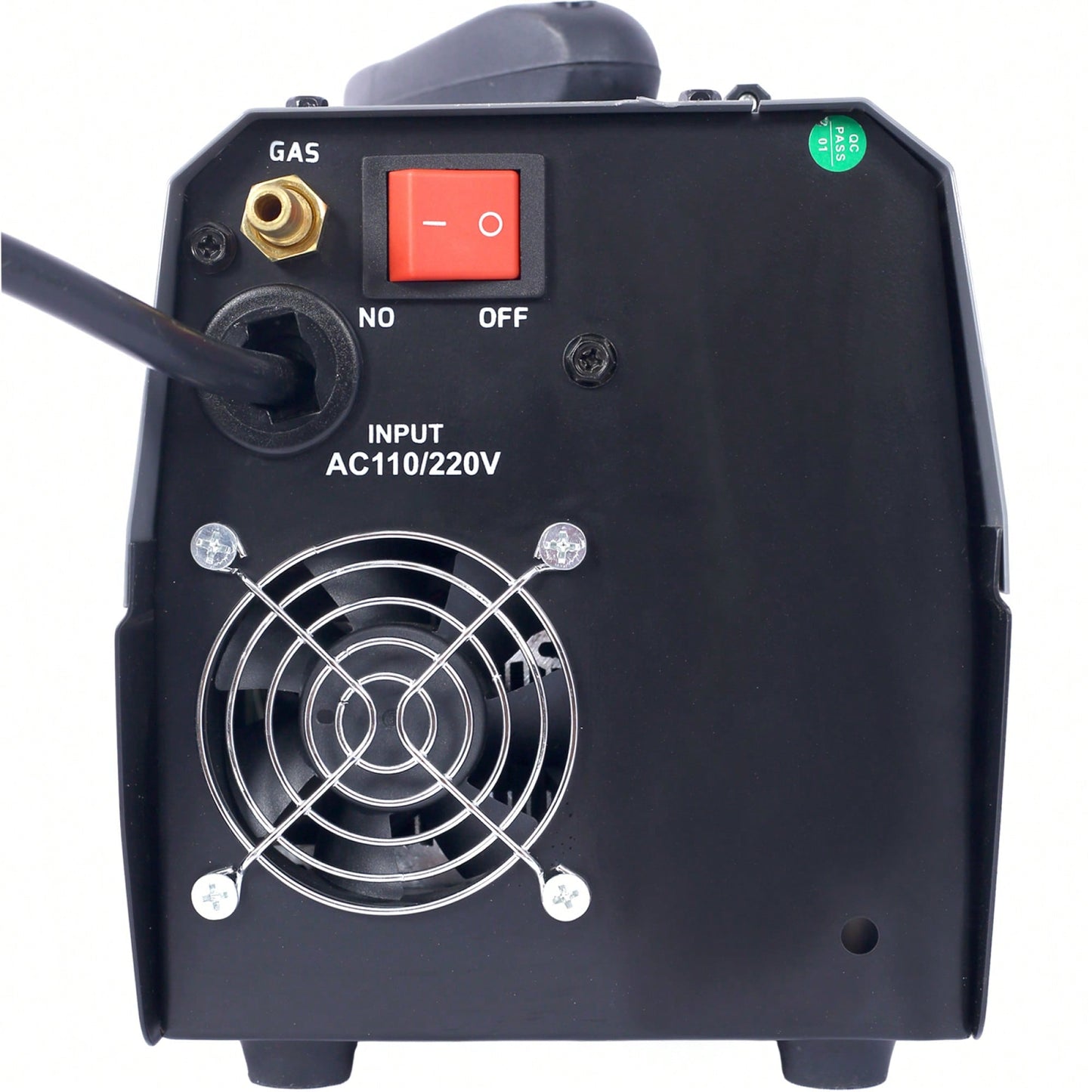

- Input Voltage: 110V
- Rated Input Capacity: 4.5 KVA
- No-Load Voltage: 65V
- Output Current Range:
- MIG: 30-140A
- MMA: 20-120A
- TIG: 20-160A
- Duty Cycle: 30% at 40°C
- Usable Welding Rod Diameter: Φ0.6/0.8/0.9/1.0mm (for MIG) and Φ1.6-4.0mm (for MMA)
- Case Protection Degree: IP21S
- Insulation Class: H

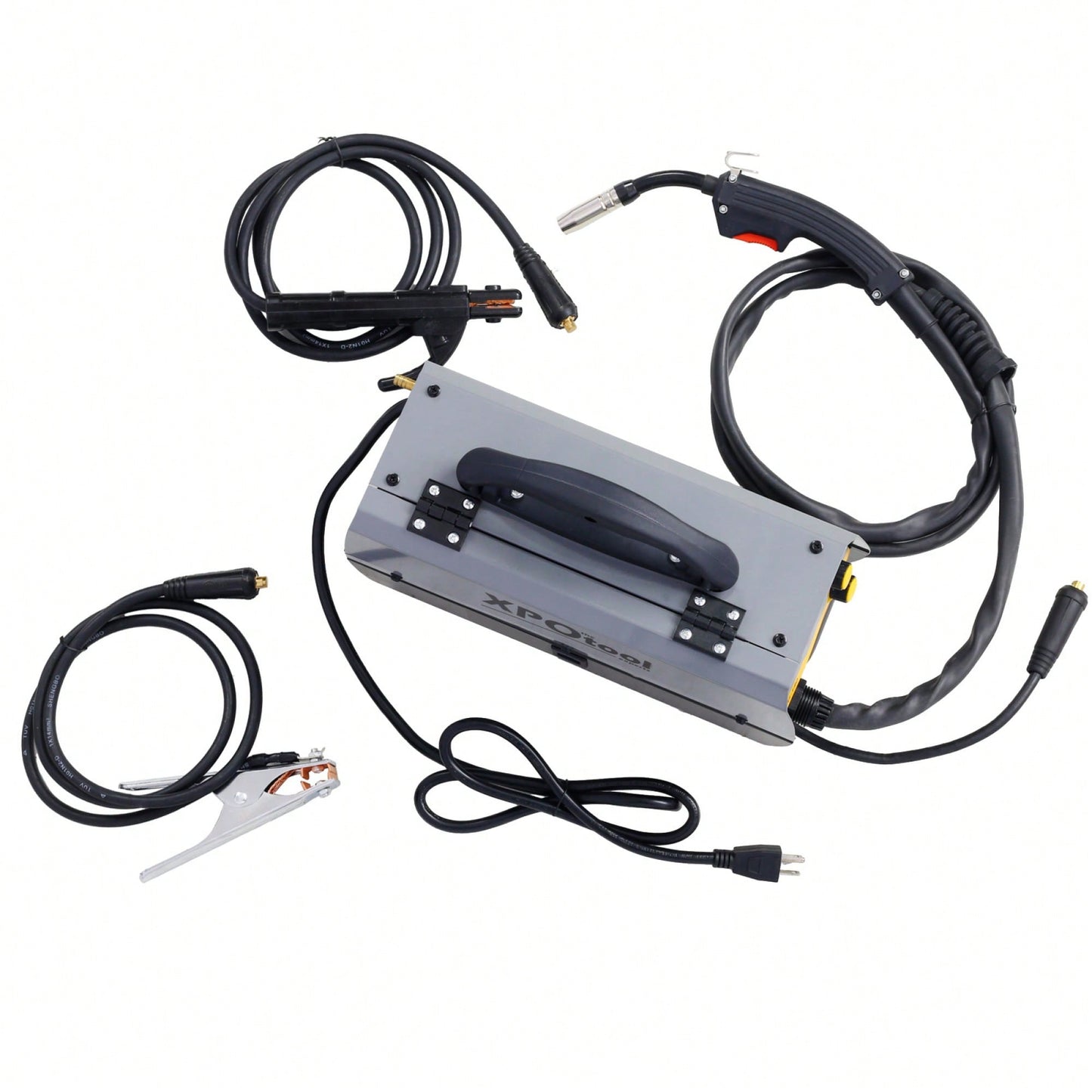

Included Accessories:
- 10' MIG Gun
- 10' Electrode Holder
- 10' Earth Clamp
- Additional .030" & .035" Contact Tips
- Hammer & Brush
- Gas Hose
